Optically Isolated Digital Input Card
Dual Channel Optically Isolated Digital Input Card for RDNET1000 Outstations and Transmitters
Intended for harsh industrial environments, this plug in card permits the interface of 2 volt free contacts to the RDNET1000 Outstation or Telemetry Transmitters.
The card features on-board optical isolators (1.5Kv) and a isolated DC/DC convertor to energise the contacts, data encoding and comes complete with a pre-assigned unique electronic serial number in line with the RDN1000 data protocol. There are also 2 x status LEDs that reflect the input contact status. (Closed = LED ON).
Features:
- RDNET1000 protocol
- 1.5Kv Optically Isolated Inputs
- 2 x Digital Inputs with status (red) LEDs
- DC/DC convertor for isolated excitation of inputs
- 100% plug and play
- TX Data status LED
- 32-bit address / Electronic serial number
- Card message type 1.1, 2.1 and 6.1 supported.
- 3 of 2-part 3.85mm pitch terminals
- Can from part of an IOT+ network

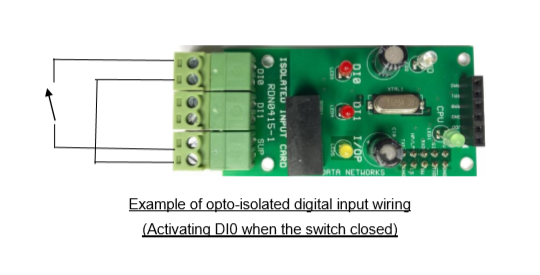

Connections:
